Item Sales Info
Part Number: P5674-82/30K
/
Vendor ID Number: 149
/
UPC: 00785247190232
/
Custom:
![5" Metallic Gray LED Outdoor Wall Cylinder](/vendors/149/large/p5674_8230k.jpg "5" Metallic Gray LED Outdoor Wall Cylinder")

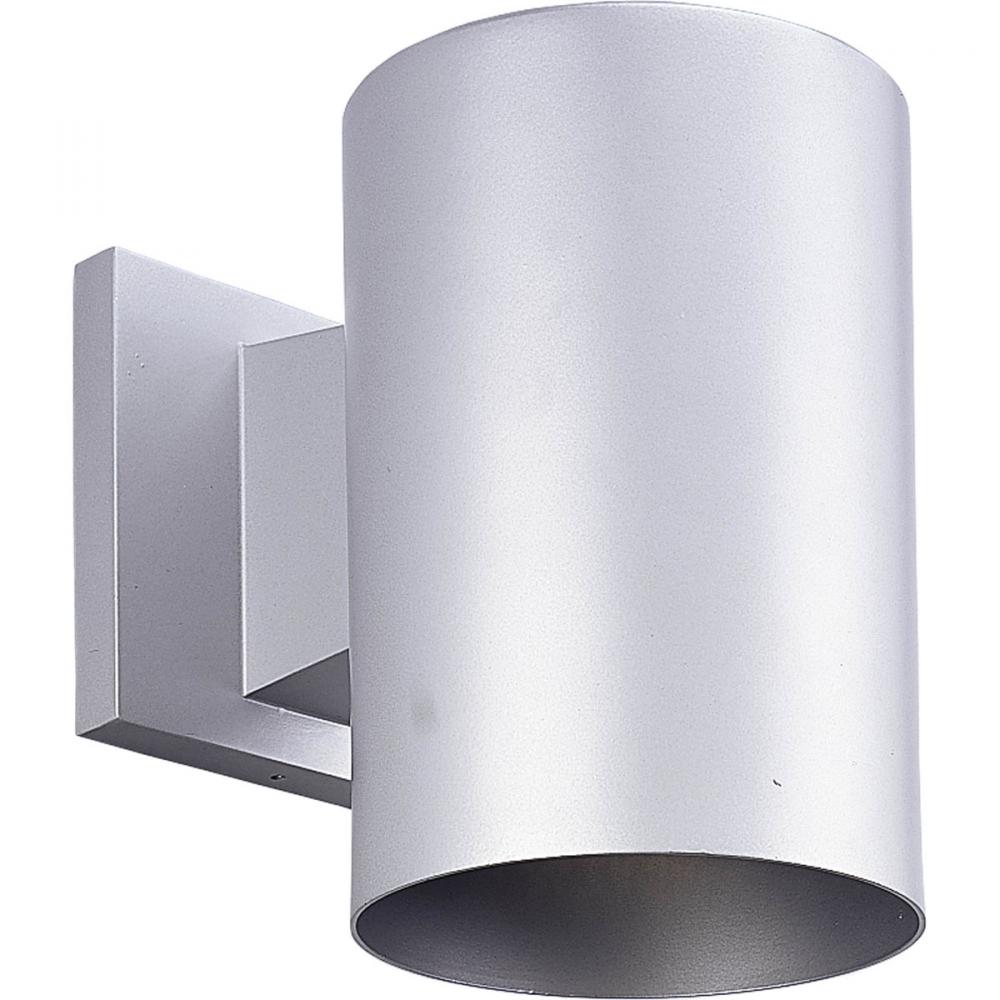

5" Metallic Gray LED Outdoor Wall Cylinder
by Progress
Call For Price
Qty
Product Specification
Dimensions
Height: 7.50"
Width: 8.00"
Product Overview
5" LED wall cylinder/wall lantern in Metallic Gray. The P5674 Series are ideal for a wide variety of interior and exterior applications including residential and commercial. The Cylinders feature a 120V alternating current source and eliminates the need for a traditional LED driver. This modular approach results in an encapsulated luminaire that unites performance, cost and safety benefits. With over 484 lumens the LED Cylinders unite performance, energy savings and safety benefits.
Product Availability
-
Item is backordered - No Date Available
Included Items
Bulbs: (1) x 17.3 Watt Module
Info & Guides
Technical Details
Details
Category:
Exterior
Subcategory:
Wall Lanterns
Finish:
Gray /vendors/vendorImages gray.jpg
Style:
Contemporary
Transitional
Option:
Dark Sky
Energy Efficient
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Outdoor
Wet Rated
LED
Title 20
Voltage:
100-120
Lumens:
450-800
Mount Type:
Flush Mount
Kelvin:
2501-3000
Location Rating:
Wet Rated
Category:
Outdoor
Finish:
Metallic Gray
Style:
Modern;Transitional
Option:
Dark Sky
Energy Efficient
Title 20
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Wet Rated
Family:
Cylinder
Voltage:
120
Number of Bulbs:
1 Bulbs
Backplate Width:
4.50
Bulb Hours:
60000
Bulb Type:
Module
Depth:
8.00
Height To Center of Outlet:
2.50
Introduction Date:
01/01/2015
Kelvin:
3000
Keyword(s):
lantern;exterior light;outdoor light
Length:
5.00
Lumens / Light Output:
484
Material:
Die Cast and Extruded Aluminum
Ship Carton Height:
8.87
Ship Carton Length:
9.00
Ship Carton Width:
6.50
Ship Weight:
2.67
Special Features:
Metallic Gray finish.;Die-cast aluminum construction with durable powder coated finish;874 lumens 42 lumens/watt (delivered);3000K color temperature, 90+ CRI;Meets California Title 24 high efficacy requirements for outdoor use only.;Dimmable to 10% with ma
Vendor Ship Method:
Non UPS Shippable False
Warranty:
5-year Limited
Weight:
2.20
Wire Included:
6 in
Americans with Disabilities Act:
No
Bulb Base:
Module
Bulb CRI:
90 CRI
Bulb Included:
Yes
Can be Mounted Up or Down:
No
Canopy Shape:
Square
Certified Listed Location:
Wet Location Listed
Construction Material Main Part:
Construction
Country of Origin:
CN
Dark Sky:
Yes, per photometry (not registered with IDA)
Design Series:
No
Dimming Compatability:
Lutron_Diva DVELV-300P;Lutron_Nova NTELV-300;Lutron_Vierti VTELV-600;Lutron_Maestro MAELV-600;Lutron_spacer/system SPSELV-600;Leviton_Renoir II AWRMG-EAW;Leviton_6615-P
Dimming Protocol:
ELV/Reverse Phase
Dimming Range:
10%
Energy Efficient:
Yes
Energy Star:
No
Finish Type:
Powder Coat Paint
Frequency Rating:
60 Hz
Grounded Convenience Outlet included:
No
JA8:
No
Lamp Type Actual:
LED
Lamp Type Basic:
Solid State
Lamp Wattage:
17.3
Lumens per Watt:
24.00
Mount Location:
Wall
MTO:
No
Operating Temperature Celcius Max:
30 °C
Post Top Fits Standard:
No
Prop 65:
Yes
Prop 65 Description:
Reproductive Harm, Cancer
Room Type:
Outdoor
Safety Rating:
cCSAus
Starting Temperature Minimum:
-30 °C
Sub Brand:
Progress LED
Title 20:
Yes
Title 24:
Yes
Weight of Fixture Exceeds NEC Limits:
No
Width Diameter:
5 in Depth
Manufactured By:
Progress
