Part Number: 902552FMW-LWD
/
Vendor ID Number: 87
/
UPC: 00640665021103
/
Custom:

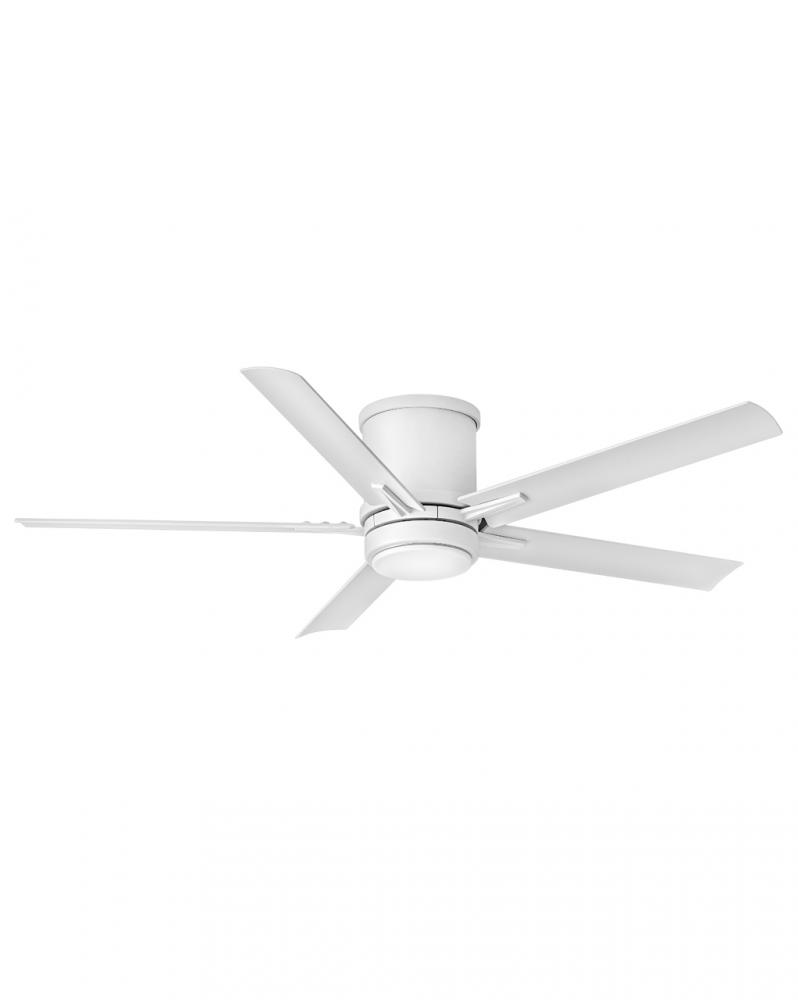

![Vail Flush 52" LED Smart Fan](/vendors/87/large/902552fmw-lwd_fmw-b.jpg "Vail Flush 52" LED Smart Fan")

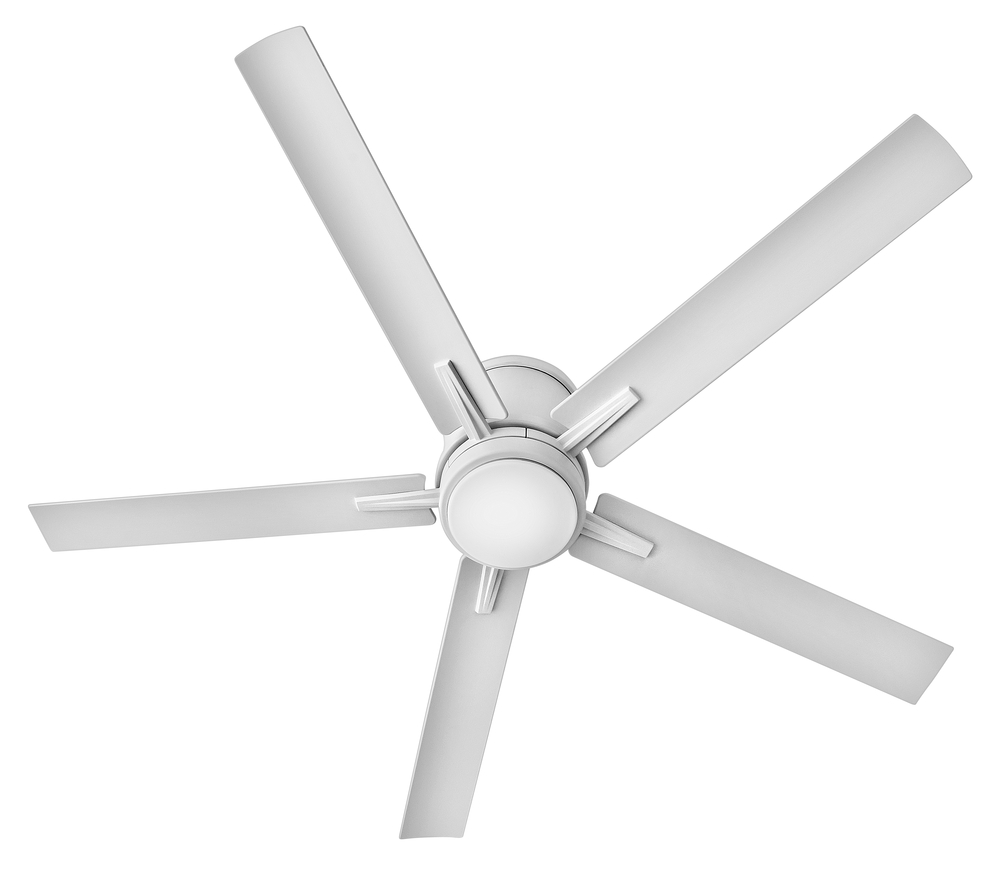

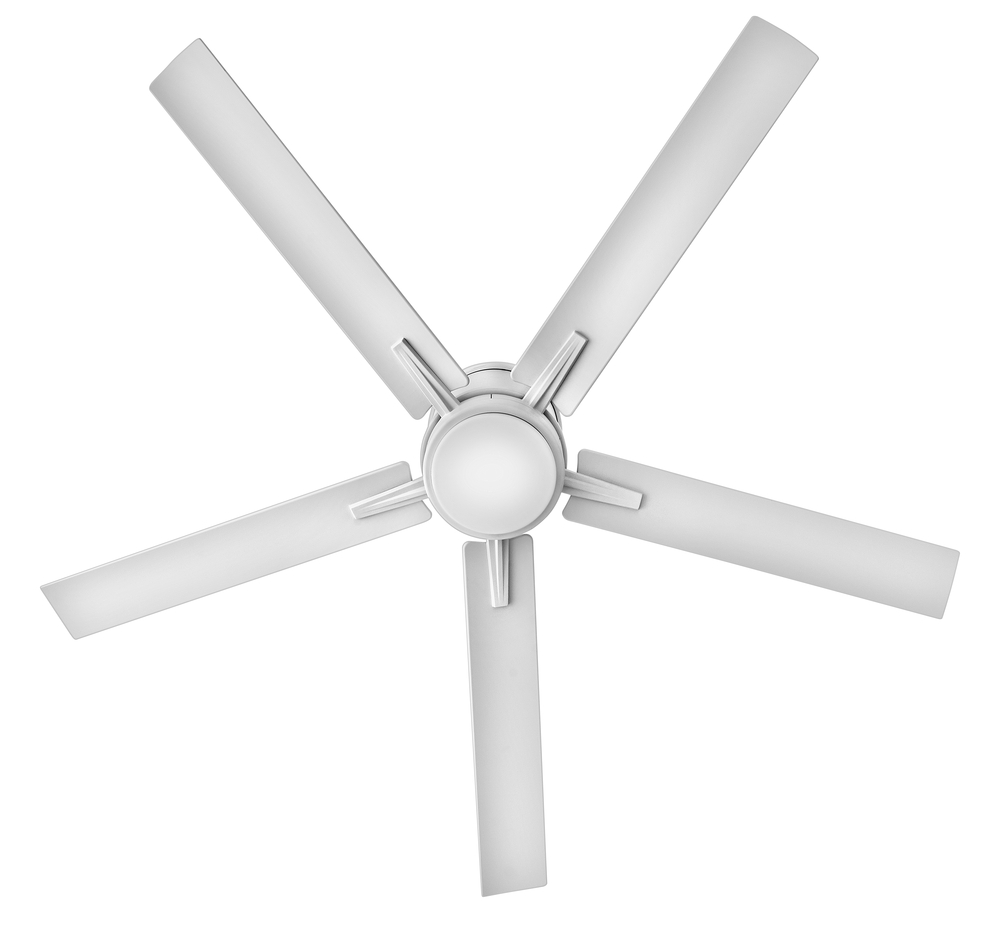

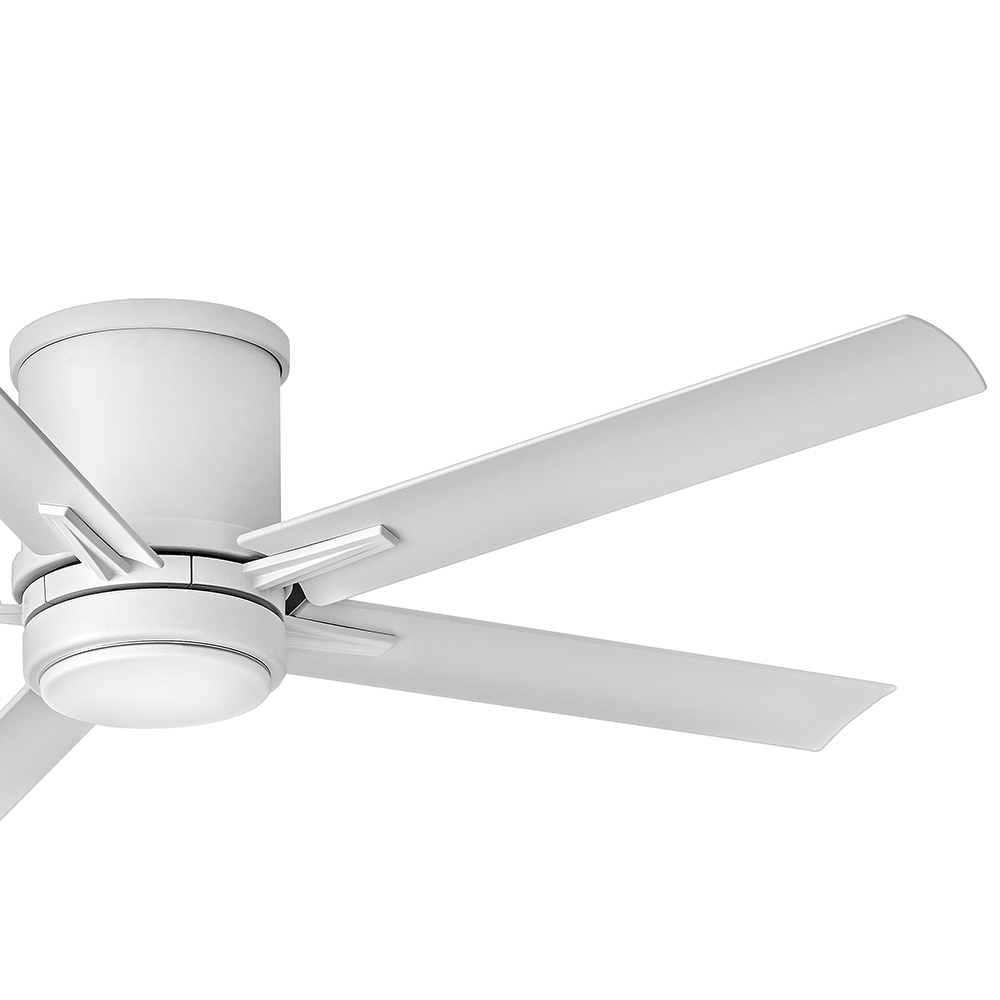

Vail Flush 52" LED Smart Fan
by Hinkley
Call For Price
Qty
Product Specification

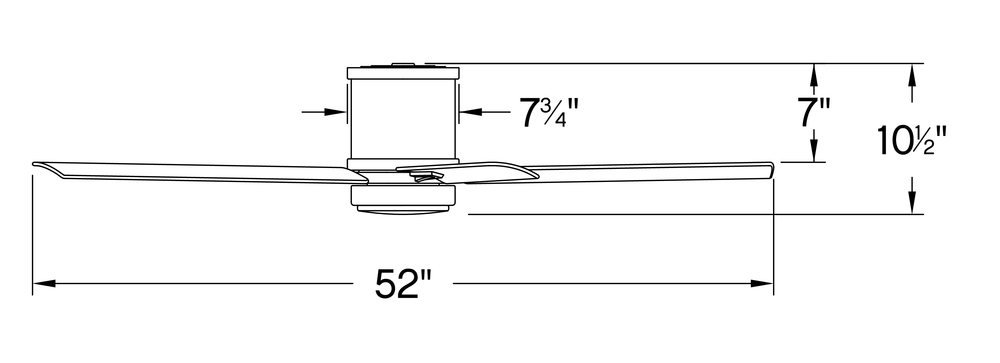

Dimensions
Height: 10.50"
Width: 52.00"
Product Overview
Vail Flush offers a transitional design with gently curved blades and an array of finish options, while its integrated LED lighting and DC motor technology deliver excellent energy efficiency. Vail Flush is so versatile; it can be used for both indoor and outdoor spaces. Blades are included with every fan.
Product Availability
-
Item is backordered - No Date Available
Additional Information
Blades, controls, switches, capacitors and hardware carry a 1-year warranty

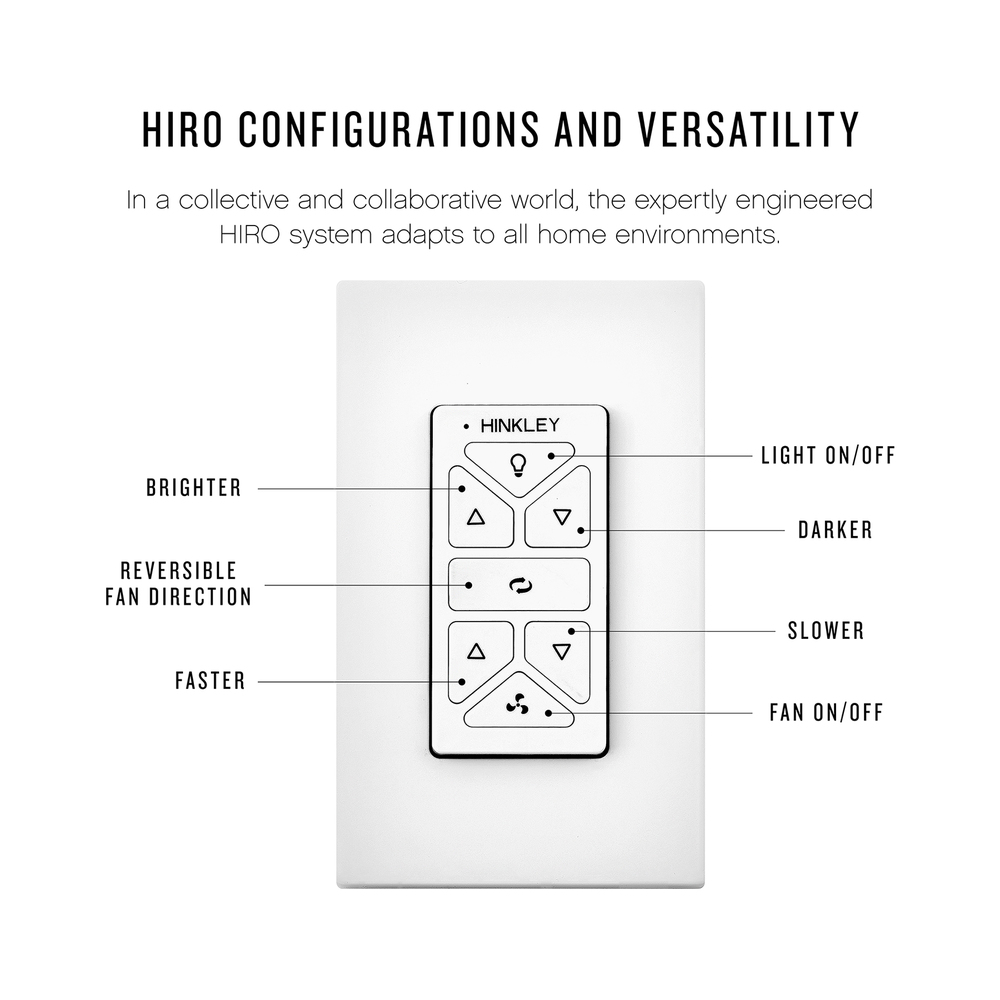

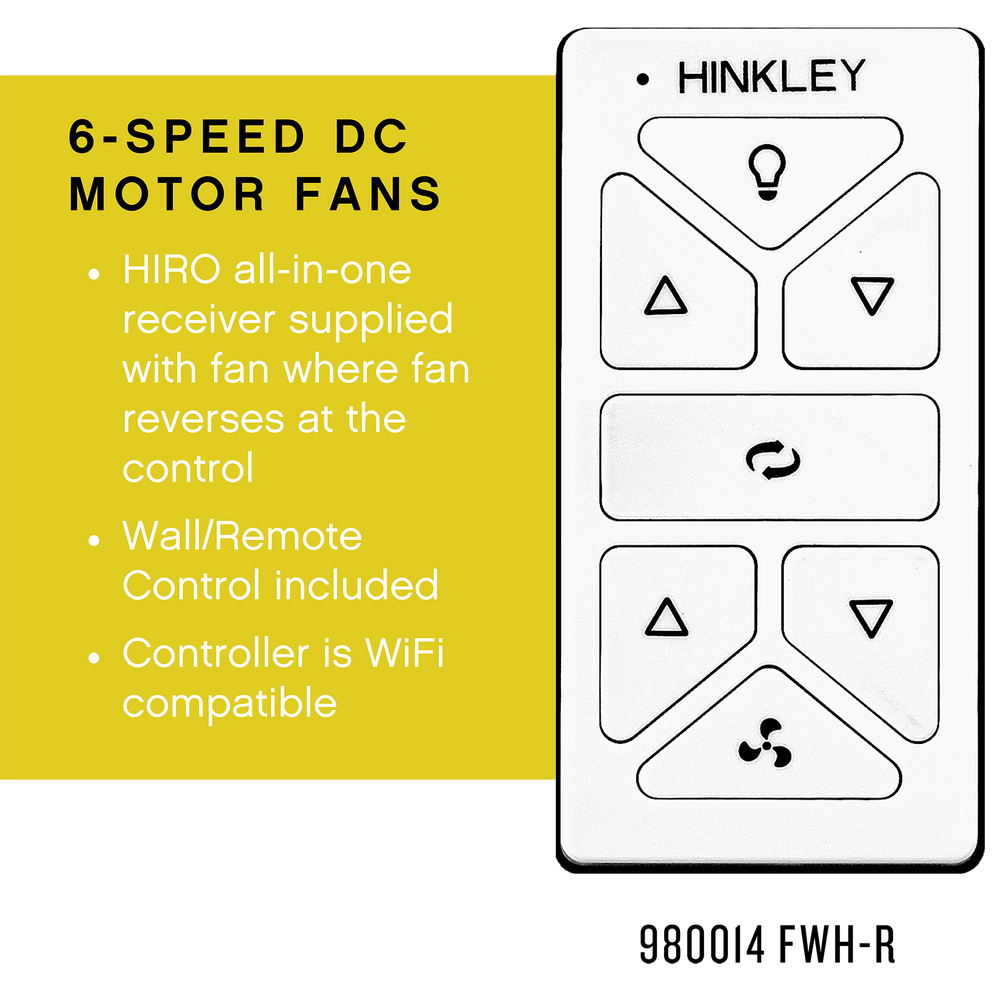

Fan Control included, HIRO Control - 6 Speed Reversing
Fans should be installed at a minimum of 7 feet from the floor
For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
LED components carry a 5-year limited warranty
Merging the best of traditional and modern elements with a sophisticated and streamlined look
Motor carries a lifetime warranty
Powered by a highly efficient and quiet DC motor
Suitable for use in wet (outdoor direct rain) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards
WiFi compatible with included fan control
Technical Details
Details
Category:
Exterior
Fans
Subcategory:
Exterior Fans
Outdoor Fans
Finish:
White /vendors/vendorImages white.jpg
Style:
Transitional
Option:
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Wet Rated
LED
Prop 65 /vendors/vendorImages prop65.png
Voltage:
100-120
Lumens:
1101-1600
Number of Blades:
5 Blades
Kelvin:
2501-3000
Location Rating:
Wet Rated
Category:
Fan
Finish:
Matte White
Style:
Transitional
Family:
Vail Flush
Glass:
Etched Opal
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Air Flow Efficiency:
6280
Amperage:
0.48
Blade Finish:
Matte White
Blade Pitch:
14
Blade Span:
52
Blades Included:
Yes
Bulb Dimmable:
Yes - CL Type Dimmer (SSL7A)
Bulb Hours:
50000
Bulb Type:
LED
Canopy:
7.75 Dia.
Introduction Date:
01/01/2022
Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
1320
Material:
Steel
Motor Size:
DC-125NS
Motor Type:
DC
Ship Carton Height:
12
Ship Carton Length:
10.5
Ship Carton Width:
29.25
Ship Weight:
16.75
Vendor Ship Method:
Parcel
Weight:
14.25
Airflow Avg:
4044
AMPS Avg:
0.27
Avg Energy Use:
26
Blade Material:
Composite
Blade Options Available:
No
Blade To Ceiling Height:
7.5
Blades Reversible:
No
Bulb CRI:
90
Bulb Included:
Yes
Control Type:
HIRO Control - 6 Speed Reversing
Country of Origin:
China
Dual Mount:
No
Efficiency Avg:
156
Efficiency High:
172
Energy Cost Avg:
7
Energy Cost High:
10.23
Energy Use High:
36.5
Fan Control:
Yes
Flush Mount Fan:
Yes
Incandescent Equivalency:
100 W
Light Kit Adaptable:
No
Light Source:
Integrated LED
Location Rating:
Wet Rated
Max Wattage:
16 W
Motor Fan Speed:
6
Number of Blades:
5
Operating Frequency:
60
Prop 65 Description:
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. for more information go to www.P65Warnings.ca.gov
Receiver Included:
Yes
Reversing Control:
Yes
RPMS Avg:
103
RPMS High:
162
Safety Rating:
UL Approved, C-US Approved
Single Power Switch:
Yes
Sloped Ceiling Adaptable:
No
Stand By Power:
0.2
Title 24:
No
WIFI Control Included:
Yes
WIFI Control Optional:
No
Manufactured By:
Hinkley
