Part Number: 65/833R1
/
Vendor ID Number: 81
/
UPC: 00045923651304
/
Custom:

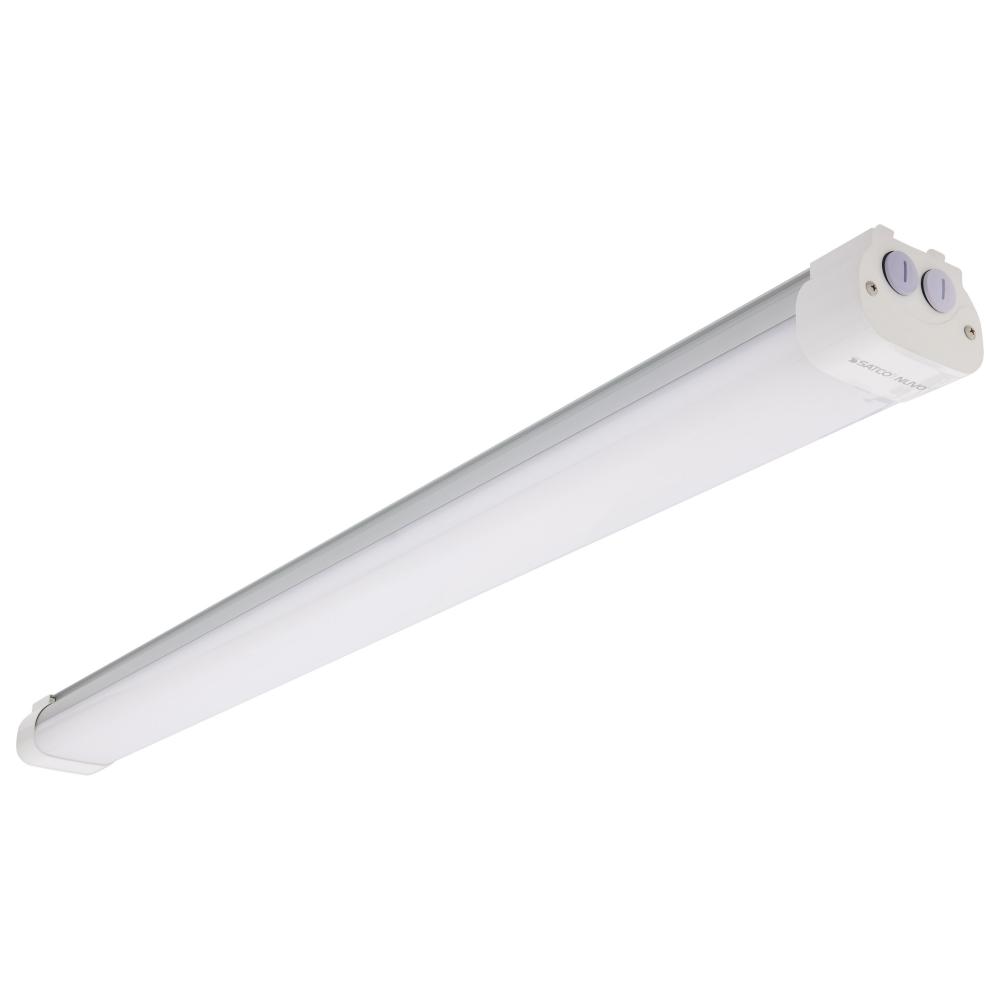

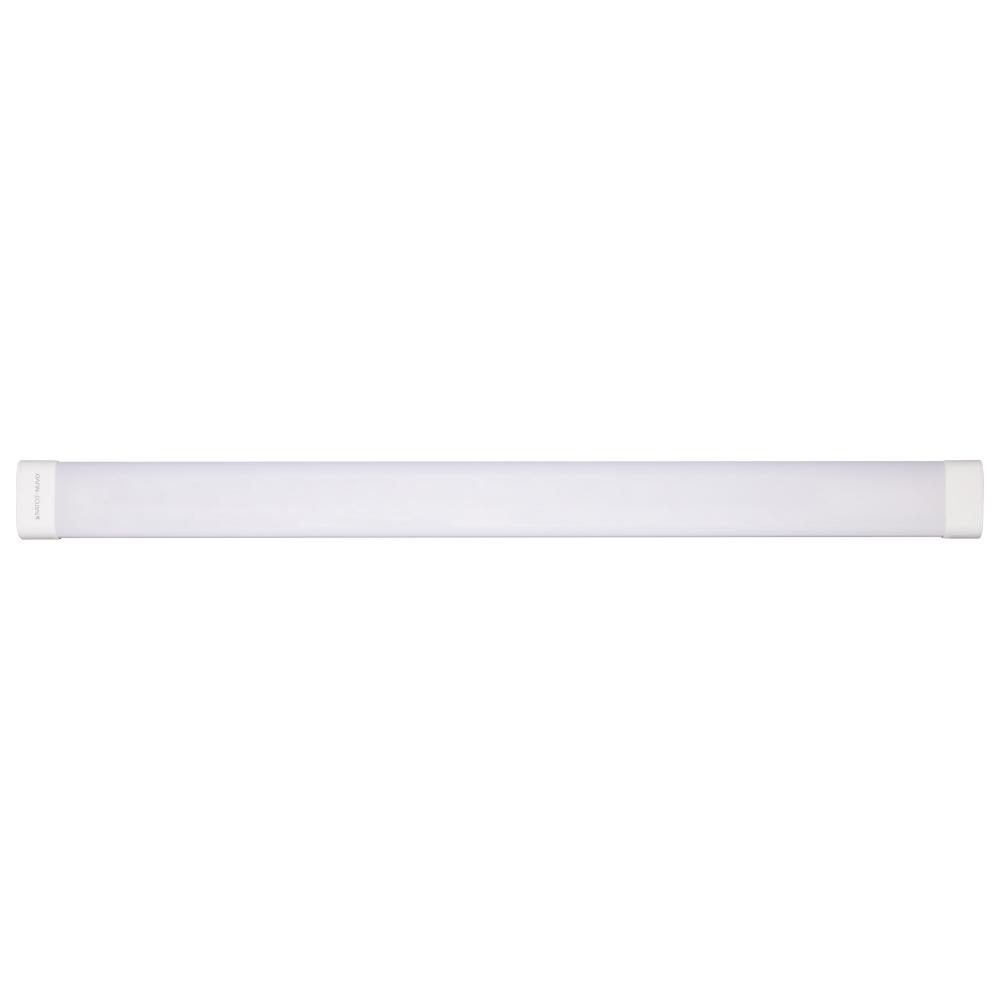

4 Foot; LED Tri-Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable;
by Nuvo
Call For Price
56 In Stock
Qty
Product Specification
Dimensions
Height: 3.11"
Width: 3.98"
Finish
White / Gray
Product Overview
4 Foot; LED Tri-Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; IP65 and IK08 Rated; 120V-347V
Product Availability
-
Manufacturer has 56 in stock / Warehouse has 0 in stock
Technical Details
Details
Category:
Utility
Subcategory:
Other Utility
Finish:
Combination Finishes /vendors/vendorImages combinations_finishes.jpg
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Lumens:
3300+
Kelvin:
4001-4500
Finish:
White / Gray
Category:
Linear
Sub Category:
Vapor Proof
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
3.15
Each Length:
49.21
Each Width:
4.13
Length:
47.24
Lumens:
5040L-7669L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.333-0.115/0.417-0.144/0.500-0.173A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
115
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
China
CRI:
80
Dimmable Function:
0-10V; Integrated Sensor
DLC Classification:
Standard; Standard
DLC Primary Use:
Low-Bay Luminaires for Commercial and Industrial Buildings; Direct Linear Ambient Luminaires
Each Cube:
0.3705
Each Quantity:
1
Efficacy:
126.00/127.09/127.82 LPW
FCC Compliant:
Yes
Feature 1:
120-347 Voltage - FOR USE IN CANADA
Feature 10:
High lumens per Watt ratio
Feature 2:
Heat and tamper resistant, water-resistant and dust-proof. Can be used in food-processing facilities
Feature 3:
IP65 and IK08 Rated
Feature 4:

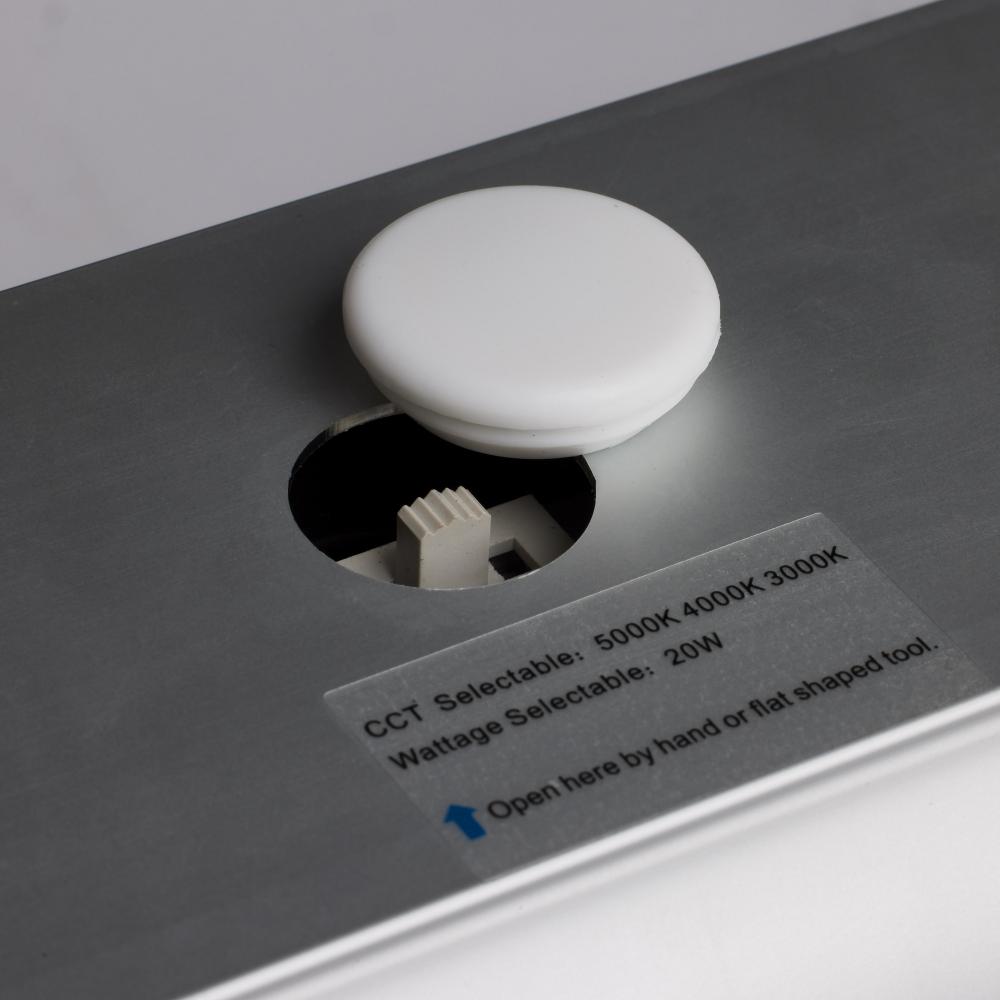

CCT and Wattage Selectable
Feature 5:
2KV built-in Surge Protection
Feature 6:
Non-corrosive (PC) polycarbonate housing
Feature 7:

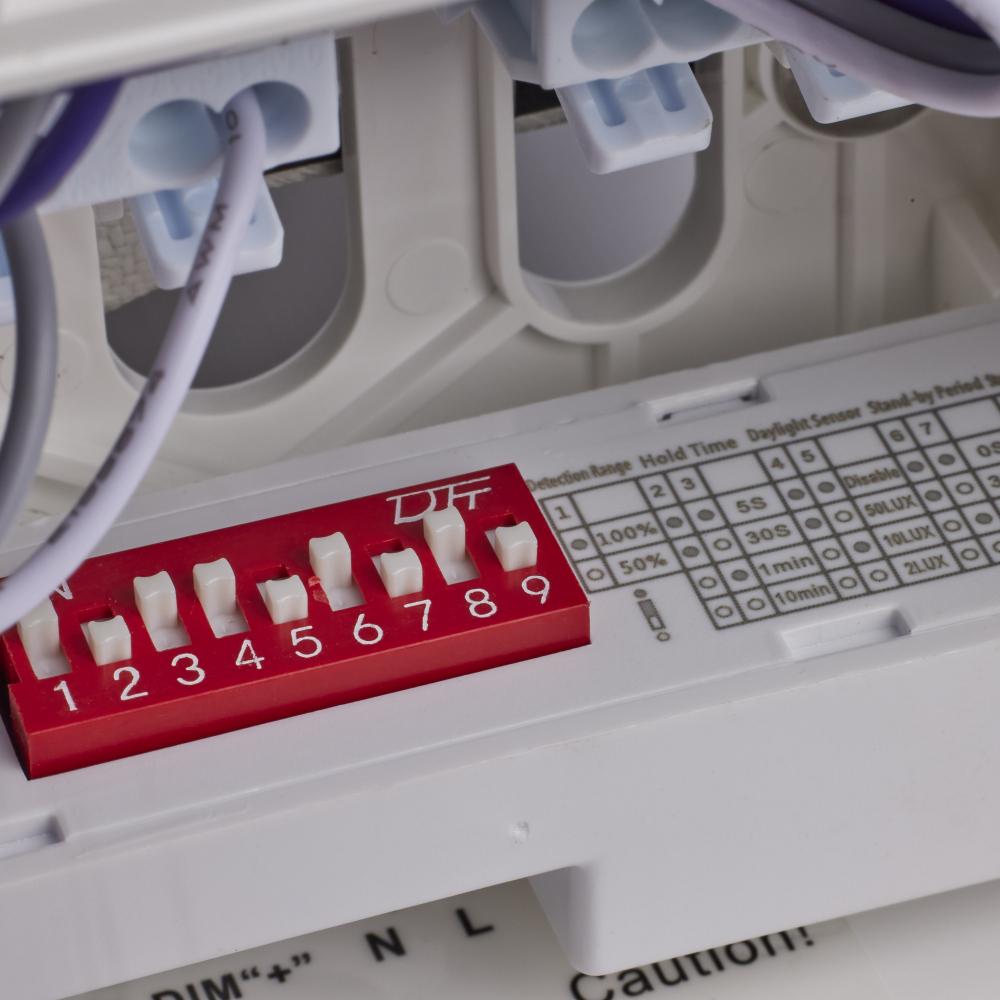

Integrated Microwave Sensor
Feature 8:
FCC and RoHS compliant
Feature 9:
5 Year Warranty
Finish Family:
White
Fixture shape:
Linear
Flicker Free:
No
Has Driver:
Yes
HID Equiv:
125W-150W
Impact Rating (IK):
IK08
Incandescent Equivalent:
300W-400W
Indoor Outdoor:
Indoor;Outdoor
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lens Finish:
Opaque
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's 65-833R1 wattage selectable, 4 foot Tri-Proof fixture is a practical solution for interior and exterior lighting. Packed with improvements and features, this linear fixture is CCT and wattage selectable and wet location rated, with 2KV sur
Material:
Plastic
Mounting Procedure:
Ceiling/Wall
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +45C (+113F)
Pack Type:
Box
Photocell:
Integrated Microwave Sensor
Power Factor:
>0.96
Quantity In Pack:
1
Rated For Vapor Tight Fixture:
Yes
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's latest LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
4' LED TRI-PROOF W/SENSOR
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
16.20%
Wattage Selectable:
Yes
Weight Lb.:
4.63
Manufactured By:
Nuvo
