Part Number: 65/684
/
Vendor ID Number: 81
/
Custom:

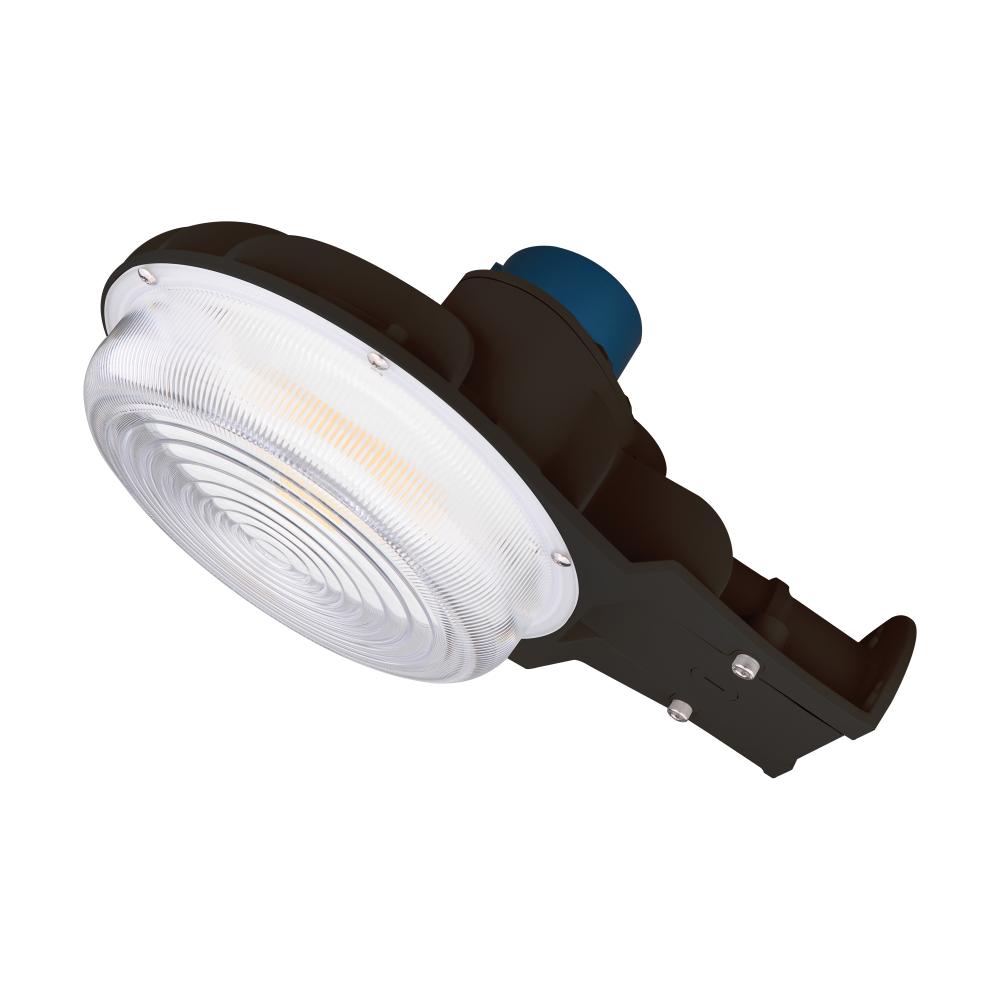

29 Watt LED Area Light with Photocell; CCT Selectable and Dimmable; Bronze Finish; 120-277 Volts;
by Nuvo
Call For Price
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 7.36"
Width: 9.13"
Finish
Bronze
Product Overview
29 Watt LED Area Light with Photocell; CCT Selectable and Dimmable; Bronze Finish; 120-277 Volts; Ultra Bright Lumens
Product Availability
-
Call for Availability
Technical Details
Details
Category:
Landscape Ltg.
Subcategory:
Path Lights
Finish:
Bronze /vendors/vendorImages bronze.jpg
Style:
Traditional
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
Bronze /vendors/vendorImages bronze.jpg
Category:
Outdoor
Sub Category:
Area Light
Style:
Traditional
Additional Info:
Type V Lighting Distribution; Dusk to Dawn Lamp
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
7.09
Each Length:
16.54
Each Width:
11.81
Lumens:
4060L-4640L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.242-0.105A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
150x150
B_U_G_Rating:
B2-U2-G1
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
70+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
Outdoor Full-Cutoff Wall-Mounted Area Luminaires
Each Cube:
0.8015
Each Quantity:
1
Efficacy:
140.00/150.00/160.00 LPW
FCC Compliant:
Yes
Feature 1:
DLC Premium
Feature 2:
Included Photocell
Feature 3:
CCT Selectable
Feature 4:
Wall or Arm Mount Installations (Arm Mount Not Included)
Feature 5:
IP65 Rated
Feature 6:
Type V lighting distribution
Feature 7:
2KV Surge Protection
Finish Family:
Bronze
Flicker Free:
Yes
Has Driver:
Yes
HID Equiv:
125W
Incandescent Equivalent:
200W
Indoor Outdoor:
Outdoor
Installation Notes:
Suitable for 42-60mm pipe installation
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's 65-684 29-watt CCT Selectable LED Area Light is engineered for performance inside and out! Built rugged using die cast aluminum and impact resistant lens these IP65 fixtures are all-weather tough. The new area light features our ColorQuick
Material:
Aluminum
Mounting Procedure:
Wall/Pipe Arm
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +50C (+122F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Has Photocell
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's 29-watt CCT Selectable LED Area Light is engineered for performance inside and out! Built rugged using die cast aluminum and impact resistant lens these IP65 fixtures are all-weather tough. The new area light features our ColorQuick select
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
29W LED AREA LIGHT W/PHOTOCELL
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
15%
Wattage Selectable:
No
Weight Lb.:
4.85
Manufactured By:
Nuvo
