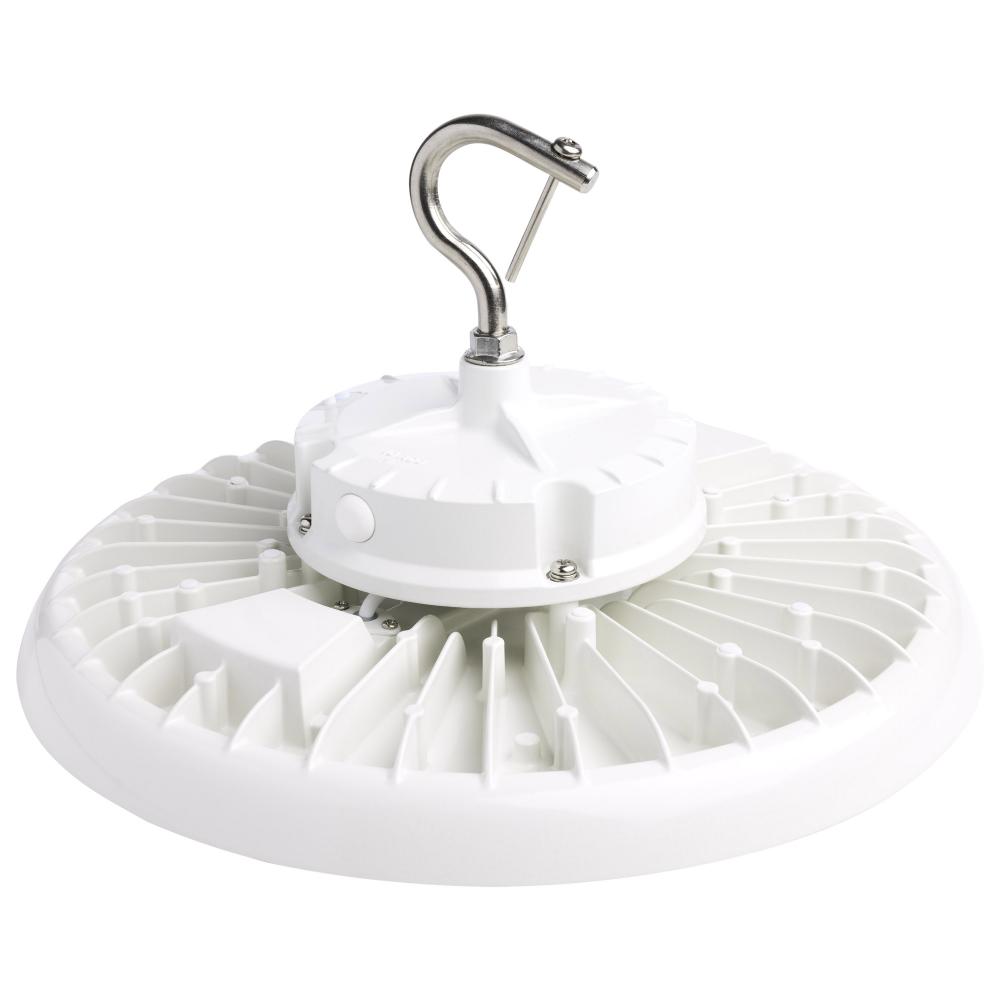

200 Watt UFO LED High Bay; 5000K; 28800 Lumens; 120-277 Volt; White Finish
Product Availability
Manufacturer has 304 in stock / Warehouse has 0 in stock
Technical Details
Details
Category:
Utility
Subcategory:
Other Utility
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Lumens:
3300+
Kelvin:
5501-6000
Finish:
White /vendors/vendorImages white.jpg
Category:
Hi-Bay
Sub Category:
UFO
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Natural Light
Diameter:
13.39
Dimmable:
Yes-Dimmable
Each Height:
4.92
Each Length:
14.17
Each Width:
14.17
Lumens:
28800L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Wire Length:
72
Amps:
1.667-0.722A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
90
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Vietnam
CRI:
80
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube:
0.5717
Each Quantity:
1
Efficacy:
144.00 LPW
FCC Compliant:
Yes
Feature 1:

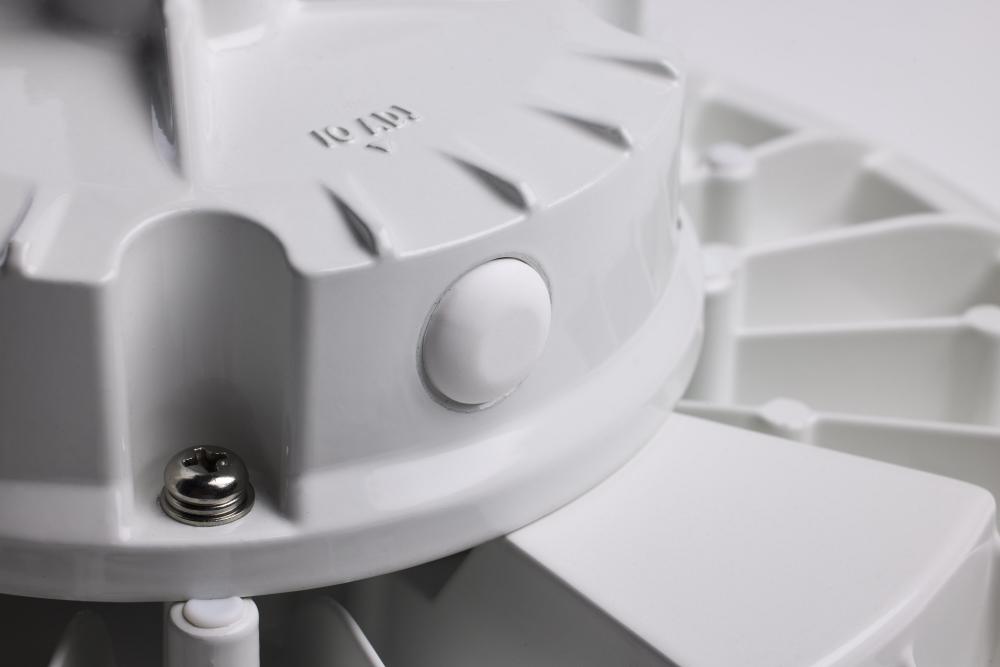

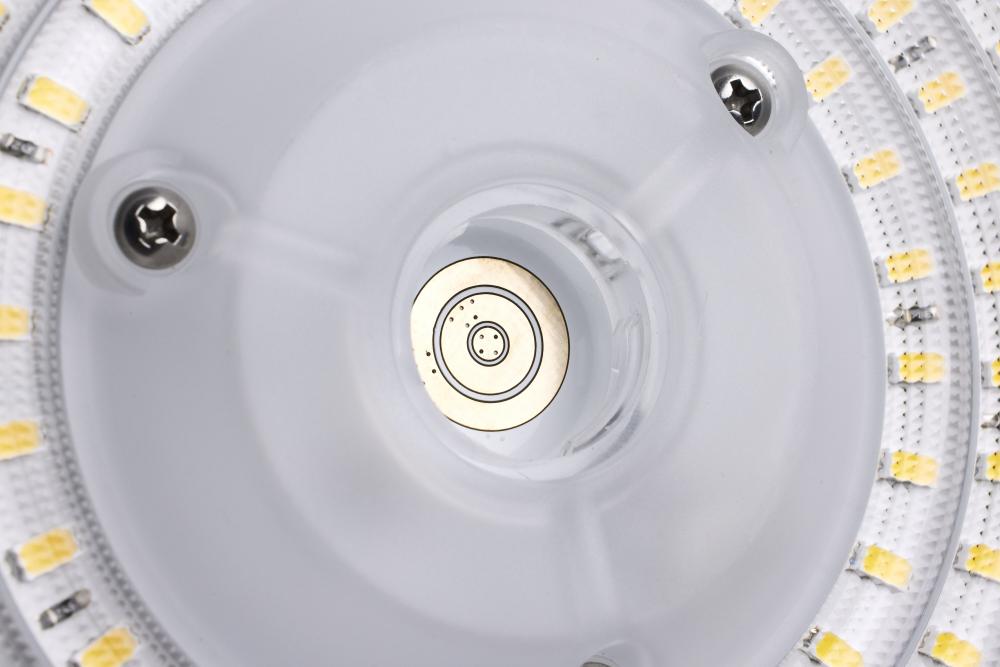

Integrated Sensor Port
Feature 2:
IP65
Feature 3:
6KV Surge Protection
Feature 4:
6 Foot Whip
Feature 5:
90 degree Beam Angle
Feature 6:
50,000 Hours
Feature 7:
5 Year Warranty
Finish Family:
White
Has Emergency Battery:
No
HID Equiv:
600W
Impact Rating (IK):
IK08
Incandescent Equivalent:
1500W
Includes:

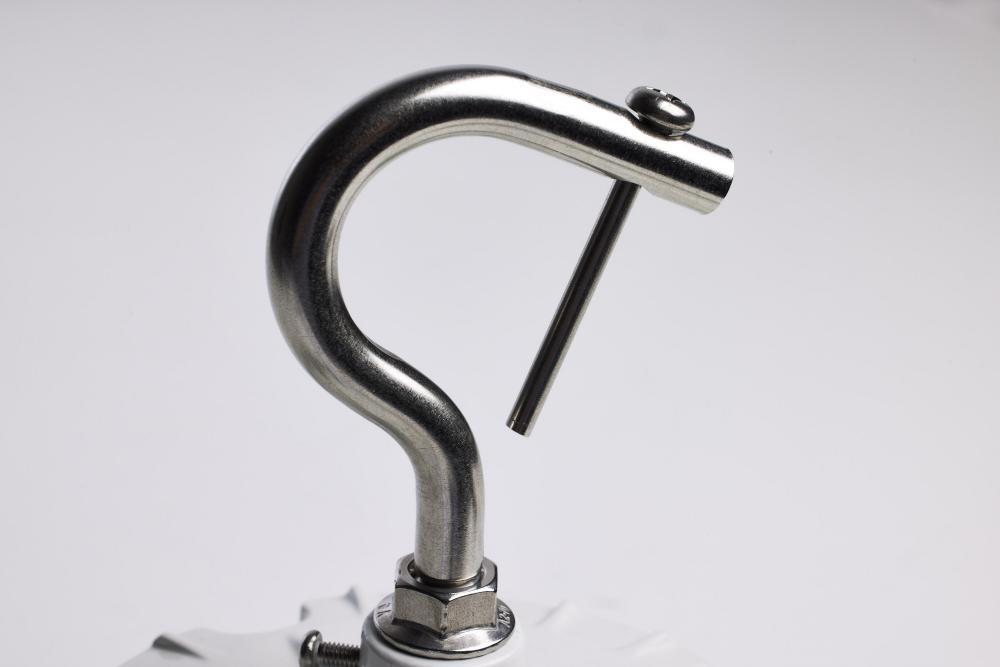

Locking Hanging Hook; 6 Foot Whip
Indoor Outdoor:
Indoor
Installation Notes:
Mounting Height: Up to 30 feet
IP Rating:
IP65
JA8 Compliant:
No
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's 65-796R2 200-watt, 5000K, white UFO LED High Bay offers superior value and meets the needs of numerous applications. A few add-ons that are available for purchase for this item include a pendant adapter, emergency battery back-up, protecti
Material:
Die-Cast Aluminum
Mounting Procedure:
Pendant Hanging Surface
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +50C (+122F)
Pack Type:
Kraft Box
Photocell:
Optional Add-On
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
5
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's 200-watt, 5000K, white UFO LED High Bay offers superior value and meets the needs of numerous applications. A few add-ons that are available for purchase for this item include a pendant adapter, emergency battery back-up, protective wire g
